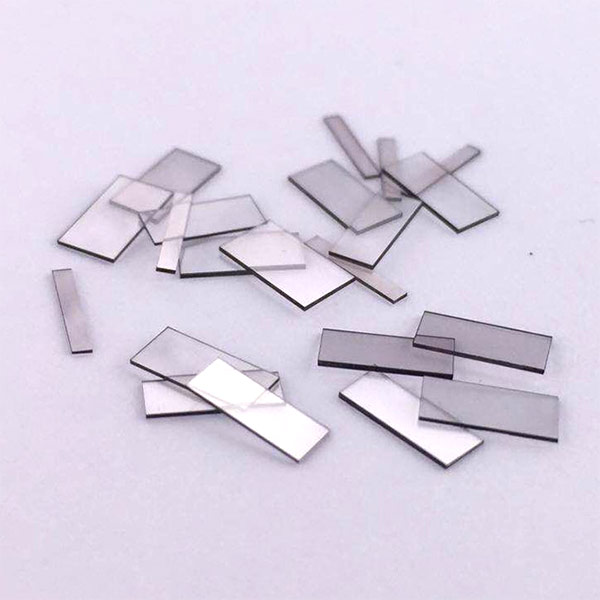

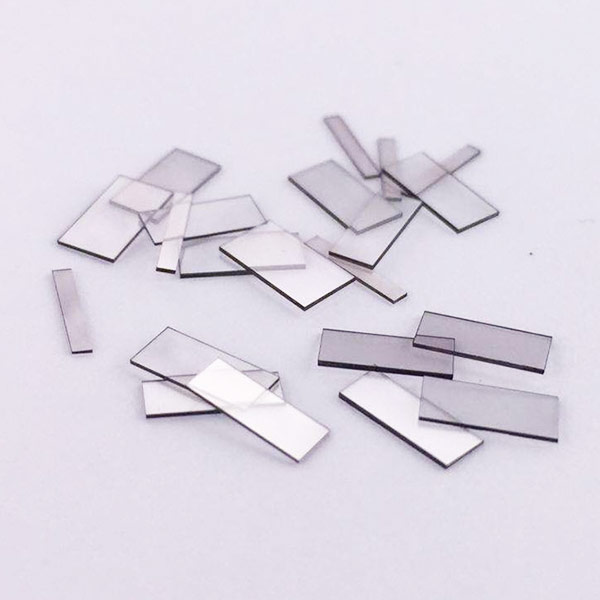

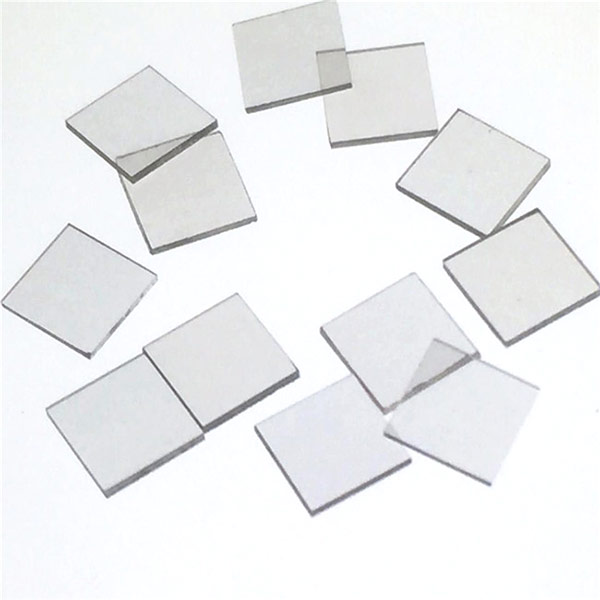

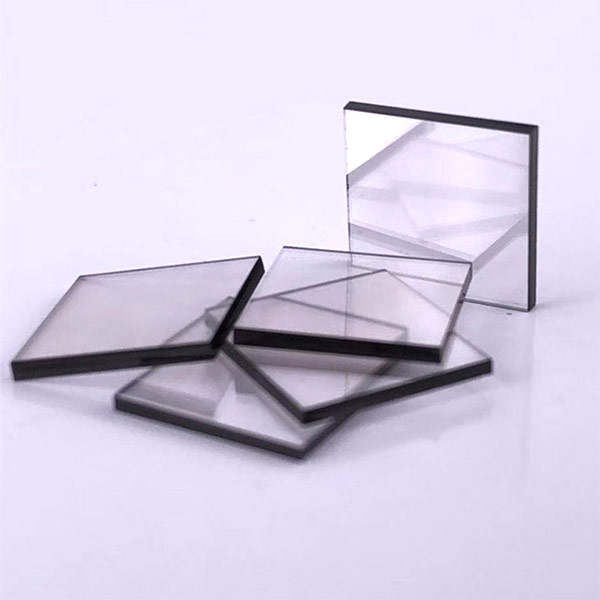

CVD MONO/SINGLE CRYSTALLINE DIAMOND

Size:- 1X 1 mm to 8 X 8 mm, 10X10mm to 12X12mm

Thickness:- 0.3mm to 3mm

Grade and application

Electronic (for Quantum optics, radiation detector, etc.)
Optical(for precision tools, optic window, anvil, sensor, etc.)
Thermal/Mechanical (for conventional tools)

Surface
As Grown or Laser Cut

Polished (Ra< 5nm, Flatness < 1 fringes @ 633nm)
Lapped (Ra< 200nm, Flatness < 1 fringes @ 633nm)

Type/Orientation
Top (100), Customized for Scalpels (based on 2 and 4 point

configuration)

Customized shapes (based on given designs)

Edges

Laser cut or polished
